UIC railway fish plates

UIC railway fish plates are the fish plates that are up to the standard of International Union of Railways. Brelow is the technical data of UIC railway fish plate:

• Standard: UIC864-4 & UIC864-8
• Material: Chinese steel grade 40#
• Size: U79 – UIC54, U85 – UIC60
• Tensile strength Rm: 550-650 Mpa
• Elongation A : ≥18%
• Chemical Composition:

C	Mn	Si	S	P
0.37-0.44	0.50-0.80	0.17-0.37	≤0.035	≤0.035

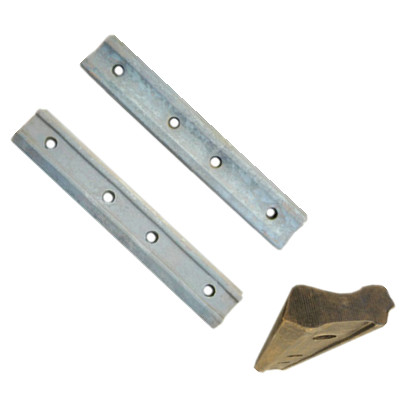

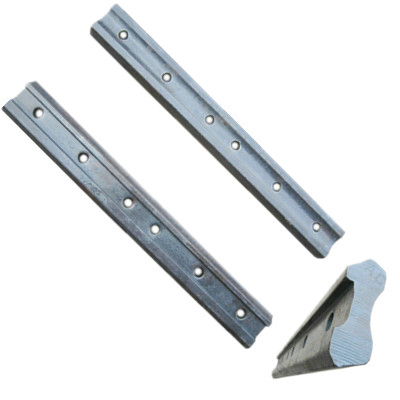

 UIC 60 railway fish plates                                                                                                  UIC 54 railway fish plates
