Welded-base rail clips

The THRAIL AWS1615/38 crane rail clips ( rail clips) is specially designed for heavy rail.Max side load 120kN,15mm horizontal rail adjustment..

AWD1615-crane-rail-fixing-clips

The THRAIL AWD1615/40 crane rail fixing clips is specially designed for heavy rail.Max side load 165kN,15mm horizontal rail adjustment..

AWS2021-crane-rail-clips

The THRAIL-AWS2021/42 crane rail clips (adjustable rail fixing clips) is specially designed for heavy rail.Max side load 165kN,21mm horizontal rail adjustment..

AWD2021 crane rail clips

The THRAIL AWD2021/42 crane rail clips is specially designed for largest rail. Max side load 300kN,21mm horizontal rail adjustment..

9116 rail clips

THRAIL-9116/08/37 crane rail clips (adjustable rail fixing clip) is specially designed for light rail.Max side load using grade 8.8 bolt 55kN,8mm horizontal rail adjustment..

9216-crane-rail-clips

THRAIL-9216/08/40 adjustable rail clips is specially designed for heavy rail.Max side load using grade 8.8 bolt 130kN,8mm horizontal rail adjustment..

9120-crane-rail-clips

THRAIL-9120/15/38 crane rail clips is specially designed for heavy rail. Max side load using grade 8.8 bolt 21kN,10mm horizontal rail adjustment..

9220 crane rail fixing clips

The THRAIL-9220/20/40 adjustable crane rail fixing clip is specially designed for largest rail.Max side load using grade 8.8 bolt 200kN,20mm horizontal rail adjustment.

BWS2015 crane rail clips

THRAIL-BWS2015/41 adjustablecrane rail clips is specially designed for heavy rail.Max side load using grade 8.8 bolt 21kN,10mm horizontal rail adjustment..

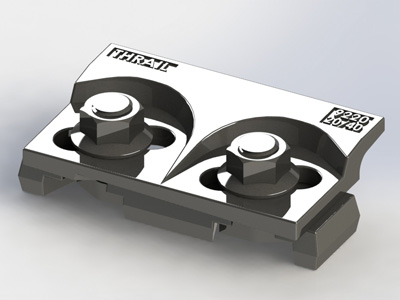

BWD2020 welded-base rail clips

THRAIL-BWD2020/43 adjustable crane rail fixing clip is specially designed for largest rail.Max side load using grade 8.8 bolt 235kN,20mm horizontal rail adjustment..

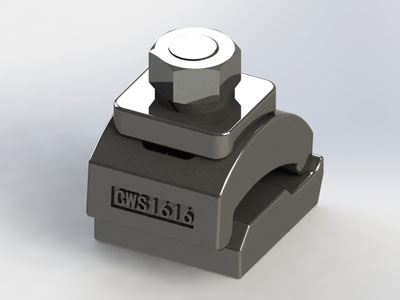

CWS1616-crane-rail-clips

THRAIL-CWS1608 welded crane rail fixing clips are especially designed for light or heavy rail.Max side load using grade 8.8 bolt . 55kN.

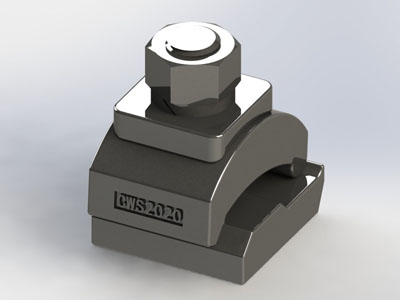

CWS2020-crane-rail-clips

THRAIL-CWS2010 welded crane rail fixing clips are especially designed for light or heavy rail.Max side load using grade 8.8 bolt.120kN.
