BS-standard-fish-plate

Below is the technical data of BS standard fish plate:

• Standard: BS47-1
• Material: Chinese steel grade 40#
• Size: BS75R, BS80A, BS90A, BS100A, BS113A
• Tensile strength Rm : 550-650 Mpa
• Elongation A : ≥18%
• Chemical Composition:

C	Mn	Si	S	P
0.27-0.84	≤0.94	0.38	≤0.058	≤0.058

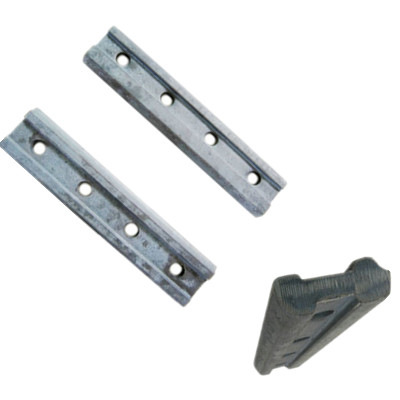

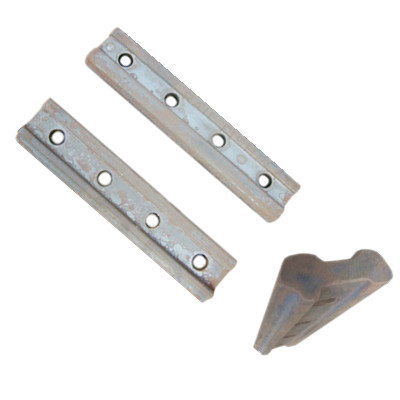

  BS 100A standard fish plate                                              BS 80A standard fish plate
