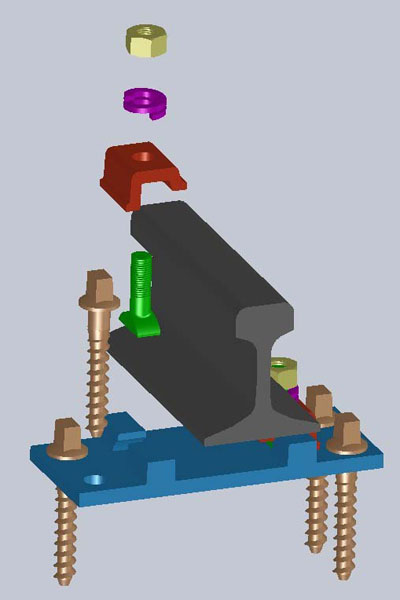

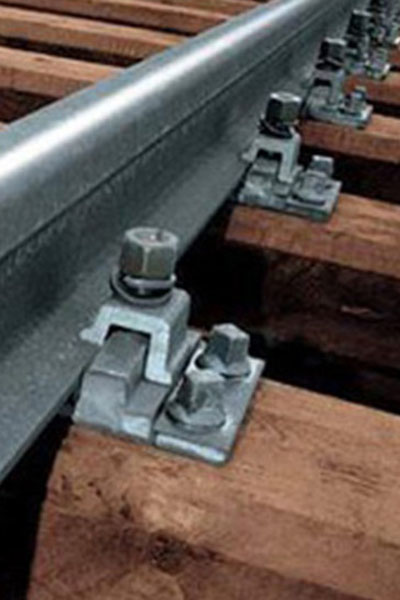

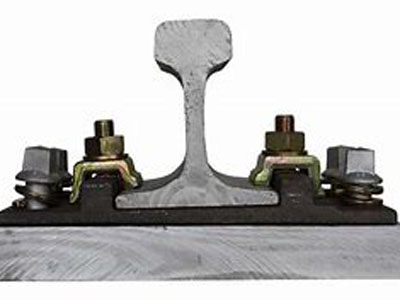

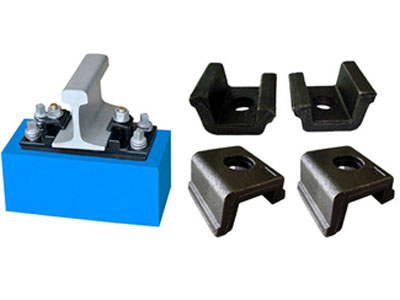

KPO clamp rail fastening system

Technical Parameters for ONE unit of KPO clamp rail fastening system

	KPO clip	Screw spike	HS bolt	Hex nut	Double coil spring washer	Base plate
Pieces required	2	2	4	2	2	1
Material	Q235	Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45#	Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45#	Grade 5: 35# Grade 8: 45#	65Mn	Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel;
Type;	KPO3, KPO6, KPO9	M24×150mm M24 ×160mm M24 ×180mm	HS26, HS32	As ordered	As ordered	UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size
NOTE	Standard: DIN5906	Standard: ISO898-1, UIC864-1 and NF F500-50	Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm	Standard: DIN985	Standard: UIC864-3	Standard: UIC864-6
