HS2420 boltable clips

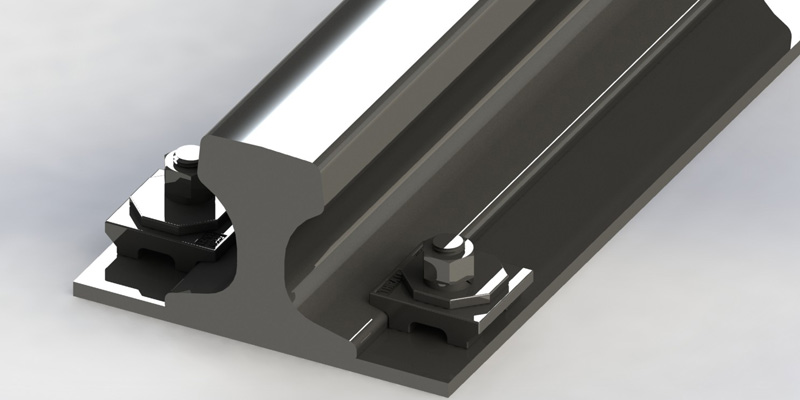

The THRAIL- HS2420

through-bolted clips(crane rail clips) are more convenient and efficient in installation.They are more economical in cost than welded clips.THRAIL-HS2420 adjustable rail fixing clip is specially designed for heavy rails.Its greatest advantage is that it has a very low height after installation and it can help to fix the rail on the narrowest steel girder.It can not only minimize installation cost,but also meet all usages of the cranes with horizontal guide rollers.

SPECIFICATIONS

Max side load using grade 8.8 bolt 125kN

20mm horizontal rail adjustment

PRODUCT PERFORMANCE

1.It can be used for all kinds of cranes with or without guide rollers.

2.It provides a optimal installation size.More over,it provides a great deal of convenience for rail installation and adjustment of the rail lateral movement.

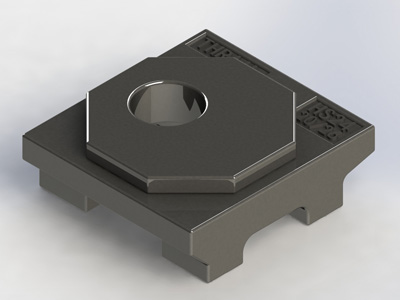

THRAIL-HS2420-Bolted-Fixing
